Proline X Down-Firing Series

A down-firing enclosure mounts the subwoofer on the bottom baffle so the cone faces the vehicle floor instead of the cabin. That does two things a rear-firing box cannot. The floor becomes part of the acoustic load, spreading bass more evenly through the cabin instead of aiming it at one trunk panel, and the cone sits underneath the cabinet where cargo, boots and dog crates cannot reach it. From above, a down-fire cabinet reads as a flat bench.

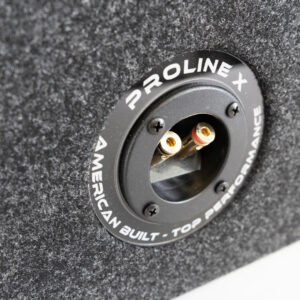

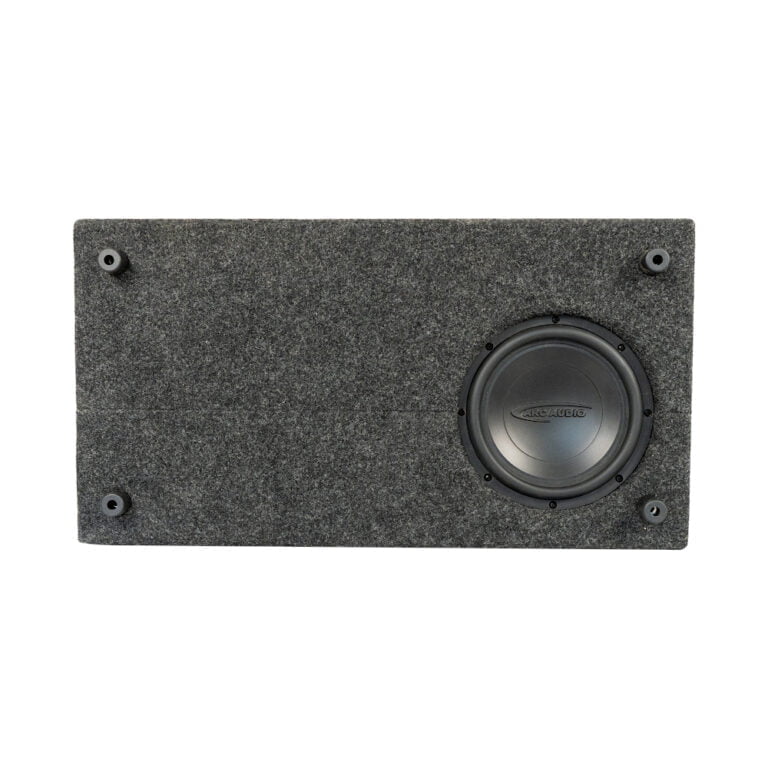

The orientation has to be designed in; a front-firing box turned upside down is not a down-firing box. The baffle moves to the bottom face, the terminal cup moves to a side wall so it is not crushed against the floor, the internal wiring routes to match, and the cabinet stands on four ABS feet that hold the cone 1.75" clear of the surface. That gap is the clearance the cone needs to move, and factory carpet and trunk liner are far too shallow to restrict it. What matters is that all four feet land on something solid and level, and that the box is strapped to the cargo tie-downs, because a driver at full excursion pushes back on the cabinet as hard as it pushes on the air.

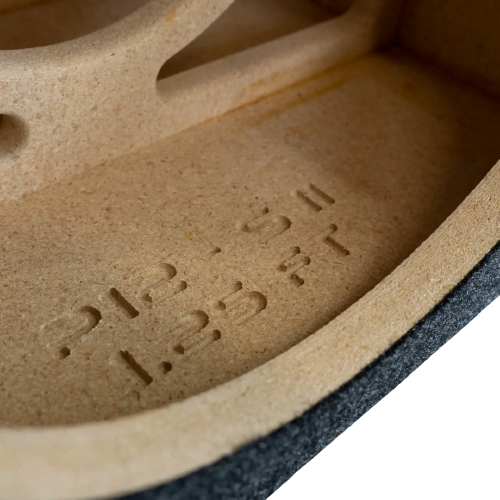

This page gathers every down-fire cabinet across the Proline X line, so the construction follows the series each one belongs to. Most are Performance Optimized builds, solved to one driver's published parameters on V-groove and dado joinery with a 1.5" double baffle. Micro Series cabinets sit alongside them, cut shallower for tight floor-to-seat clearance, and every Micro ships with feet so it runs down-fire or upright. The Vehicle Specific Bronco Edition dual 12 is a direct-fit down-fire cabinet built for that cargo bay. Warranty follows the series the cabinet comes from.

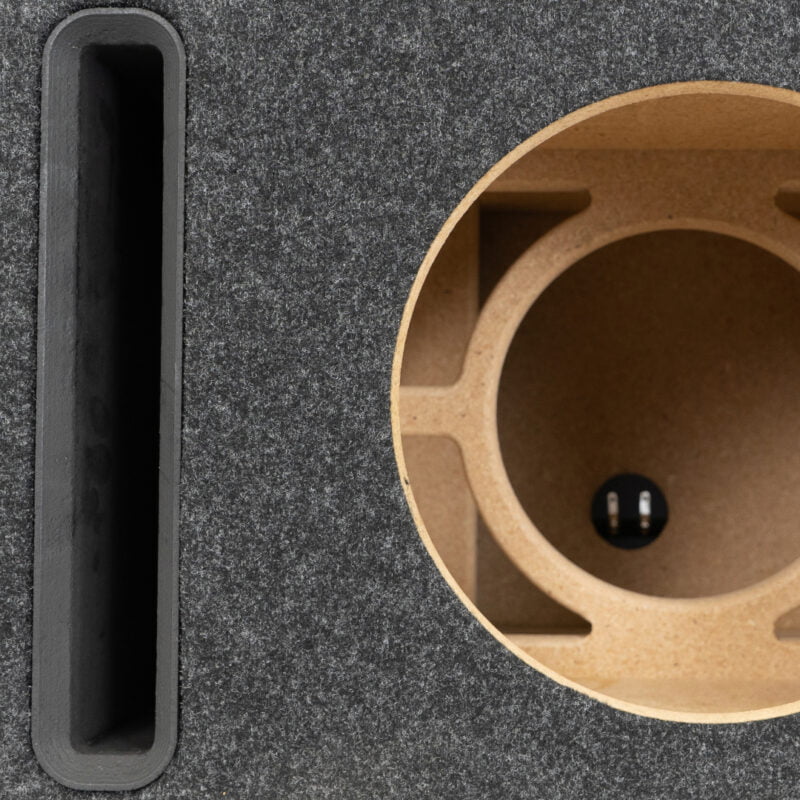

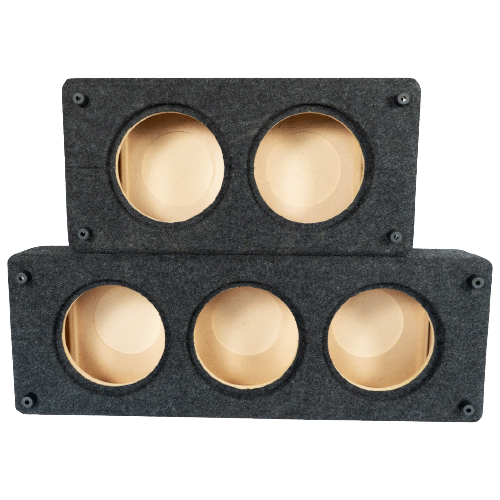

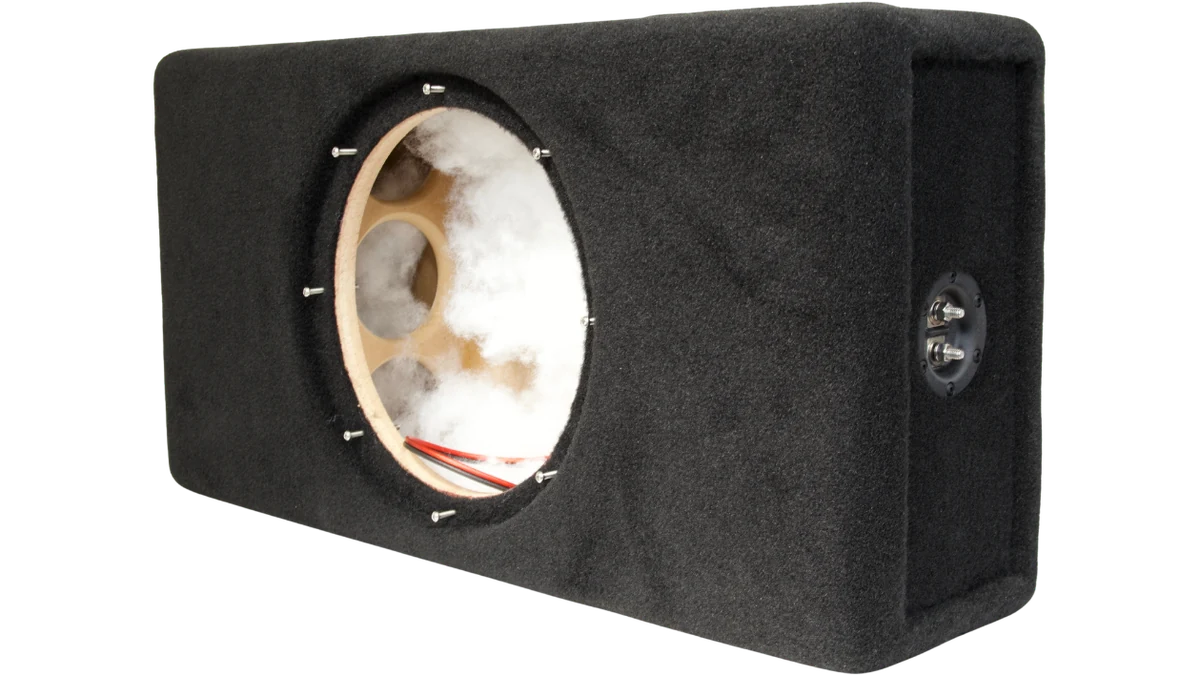

The line runs sealed and ported. Sealed cabinets ship with polyfill sized to their volume, and on the duals each driver gets its own isolated chamber, with the quoted volume stated per chamber. The ported down-fires carry an L-wrap slot port, one folded wall with a single bend, sized to the driver and stated as a tuning frequency on the datasheet; they use one common chamber and ship dry, because damping material changes the volume the port is tuned against.

Down-fire is the right call for SUV and hatchback cargo bays where things get stacked on the box, for trucks with usable under-seat space, for open cabins like Jeeps and Broncos where the cargo area opens into the passenger compartment with no closed trunk to load the back wave, and for any build that should not show a cone. It needs a reasonably flat surface to sit on; it is the wrong choice for irregular floors, deep wheel-well intrusions, or anywhere the enclosure has to mount to a vertical wall. The amplifier requirement is set by the driver, not the orientation.
