Expert Guide: Build Fiberglass Sub Box
Building a custom fiberglass subwoofer box represents the pinnacle of car audio customization, allowing enthusiasts to create enclosures that perfectly match their vehicle’s unique contours while delivering exceptional acoustic performance. This comprehensive guide provides professional-level techniques for constructing durable, high-quality fiberglass enclosures that rival commercial installations.
Car audio professionals and serious DIY builders will find detailed instructions covering everything from resin selection and safety protocols to advanced finishing techniques. The process requires patience and attention to detail, but the results provide unmatched customization possibilities and superior acoustic integration.
Critical Safety Requirements
Fiberglass work involves hazardous chemicals and requires proper ventilation, personal protective equipment, and controlled work environments. Always work in well-ventilated areas, wear appropriate respirators, nitrile gloves, and eye protection. Polyester resin emits strong styrene fumes that can cause health issues without proper precautions.
Materials and Tools Required
Resin System
- Polyester Laminating Resin – Most economical choice, excellent for car audio applications
- MEKP Catalyst – 1-3% by volume depending on temperature
- Epoxy Alternative – Superior bonding but higher cost
Reinforcement Materials
- Chopped Strand Mat (CSM) – 1.5 oz weight for bulk and conformability
- Woven Cloth – 6-10 oz for structural strength
- Fleece Fabric – For smooth front surface formation
Essential Tools
- Mixing Equipment – Cups, stir sticks, graduated containers
- Application Tools – Chip brushes, rollers, squeegees
- Cutting Tools – Scissors, utility knives, rotary cutters
Safety Equipment
- Respiratory Protection – Organic vapor respirator (essential)
- Hand Protection – Nitrile gloves (multiple pairs)
- Eye Protection – Safety glasses or goggles
Planning and Volume Calculations
Accurate volume calculations form the foundation of successful fiberglass enclosure construction. Professional builders always begin with precise measurements and acoustic calculations to ensure optimal subwoofer performance.
Critical Considerations:
- Subwoofer displacement volume
- Internal bracing requirements
- Port volume (if ported design)
- Irregular shape compensation
Step-by-Step Construction Process

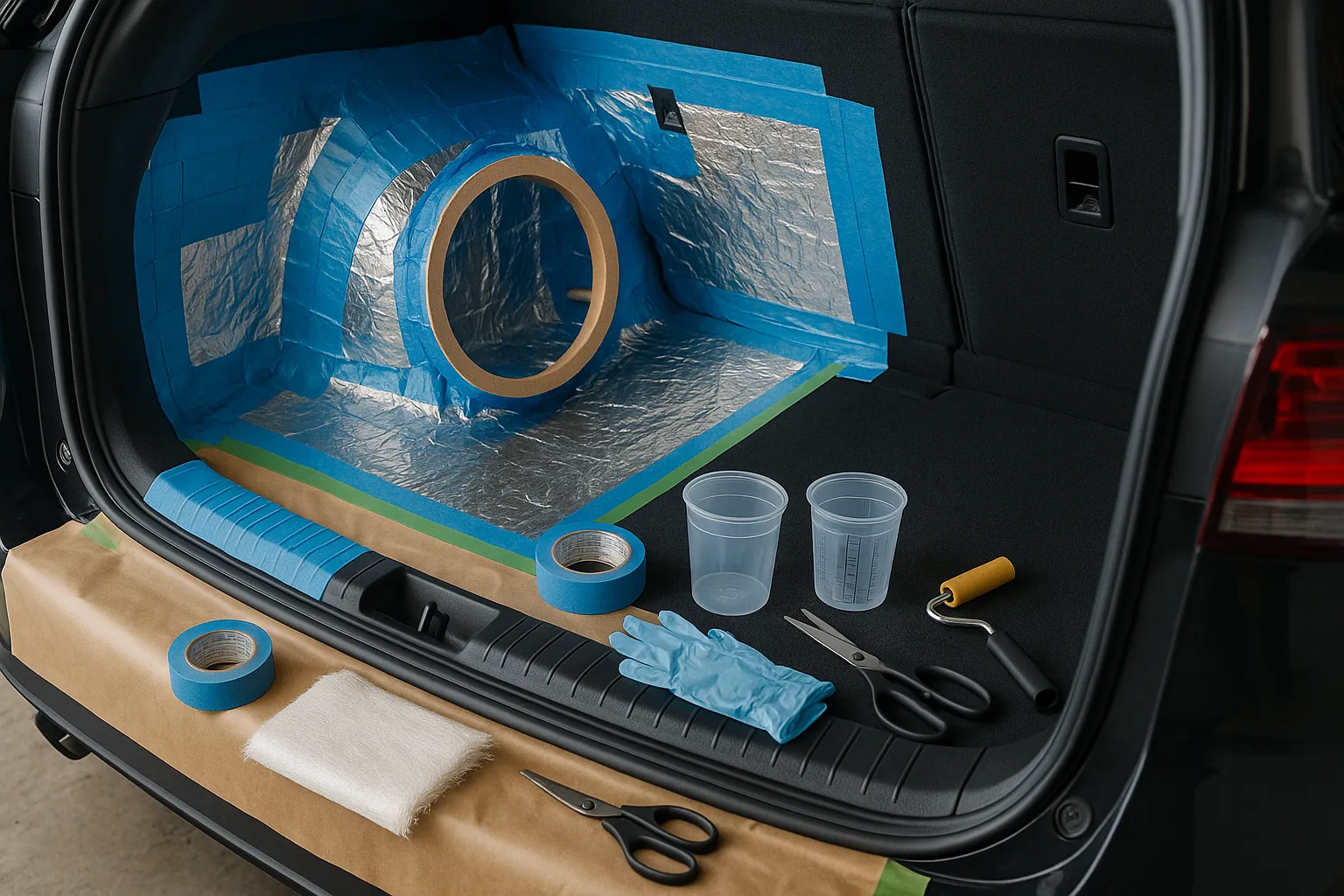

Vehicle Protection and Mold Release
Proper vehicle protection prevents costly damage from resin spillage and ensures clean enclosure removal. Professional installers use multiple protection layers and high-quality release agents.
Protection Steps:
- • Apply multiple layers of blue painter’s tape
- • Add aluminum foil in complex areas
- • Use PVA release agent for guaranteed separation
- • Protect surrounding trim and carpet

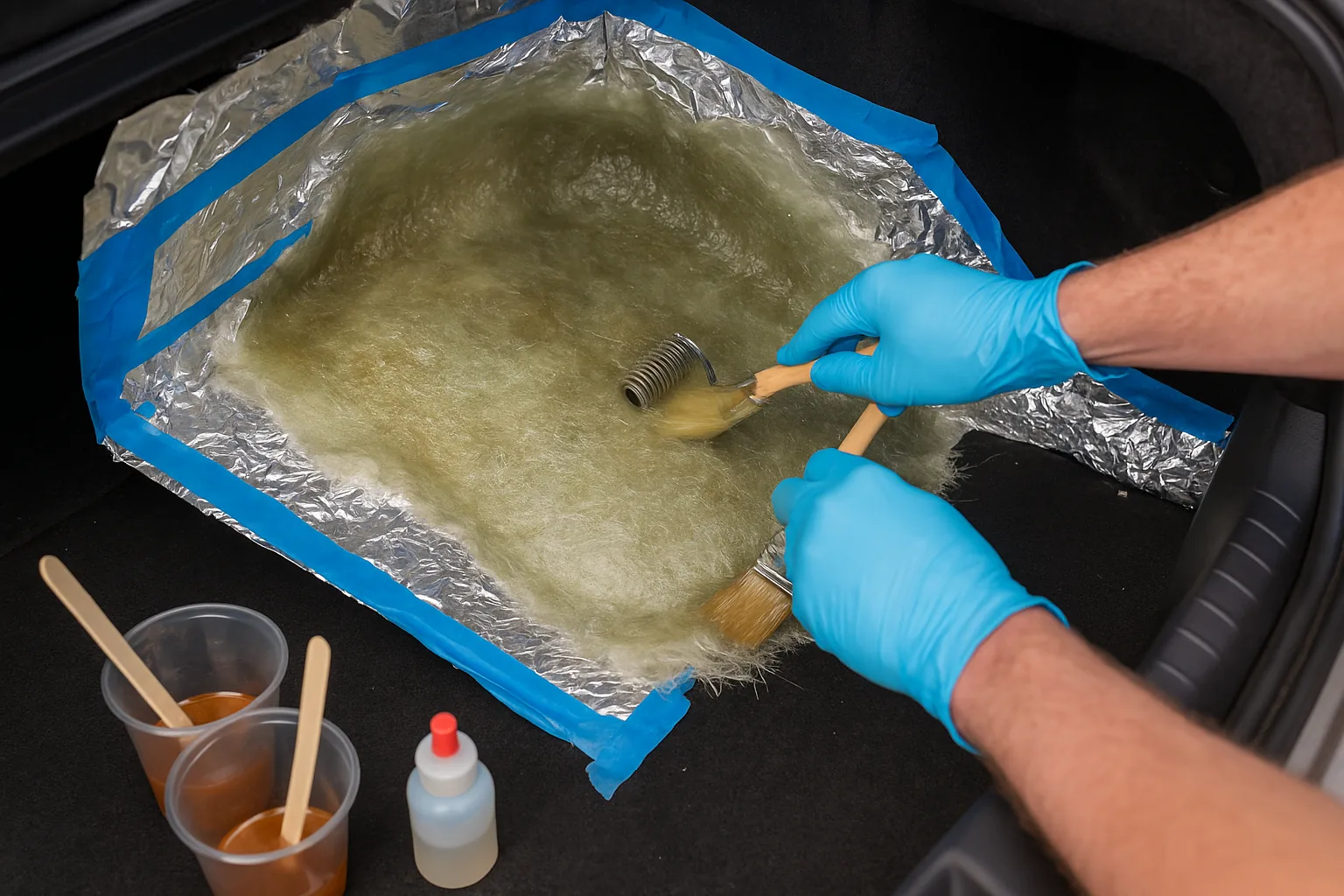

Initial Shell Layup
The initial shell formation requires careful attention to resin-to-reinforcement ratios and proper stippling technique to eliminate air bubbles and ensure complete wet-out.
Pro Tip:
Tear CSM into 4-6 inch irregular patches. Torn edges feather better than cut edges, creating stronger overlap bonds and reducing resin-rich seams.

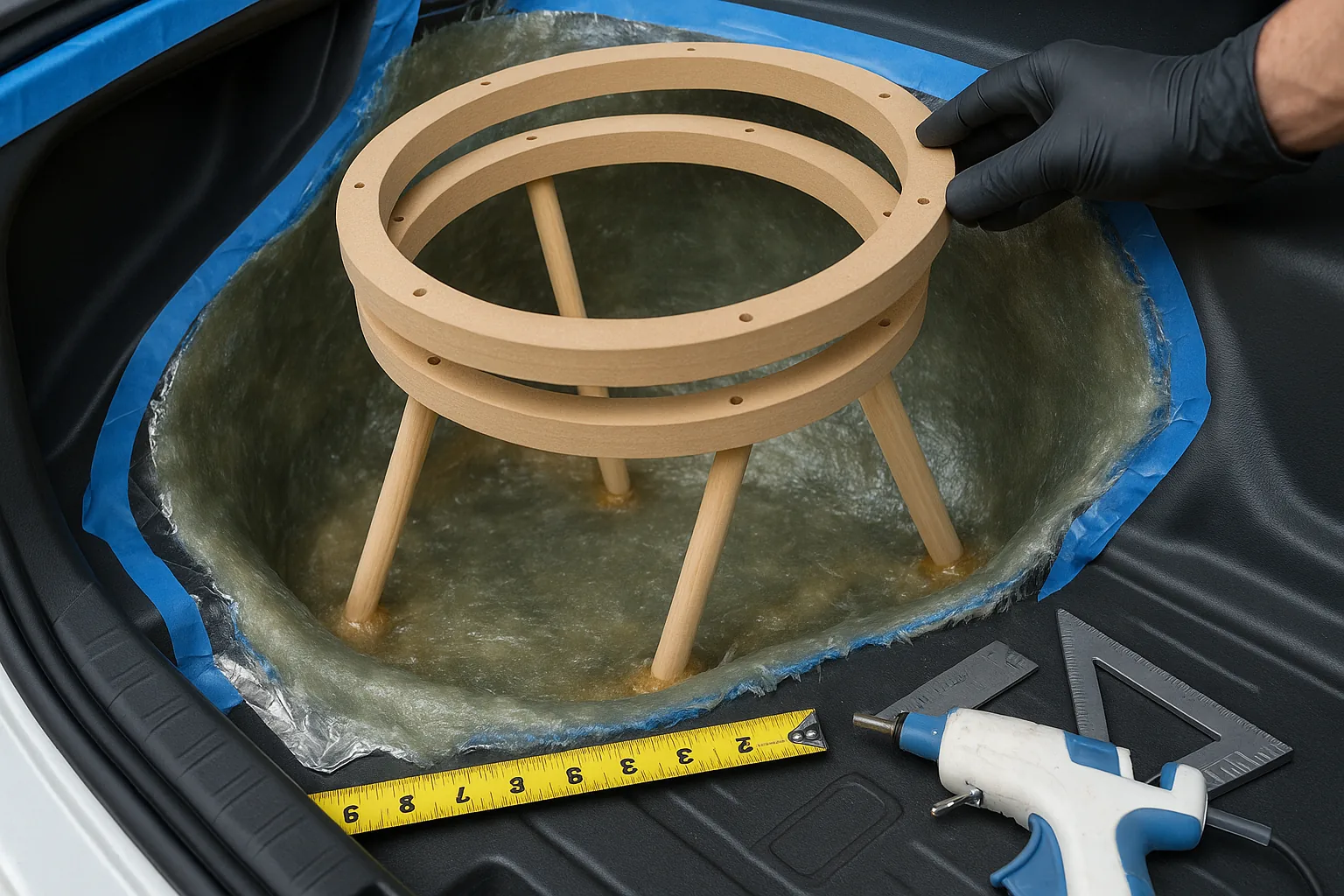

MDF Ring and Framework Assembly
The MDF ring and dowel framework establishes the enclosure’s front geometry and mounting system. Precision in this step determines the final fit and acoustic performance.
Framework Requirements:
- • Use high-quality MDF for dimensional stability
- • Position dowels for optimal cone clearance
- • Ensure framework rigidity before skinning
- • Plan for mounting hardware integration

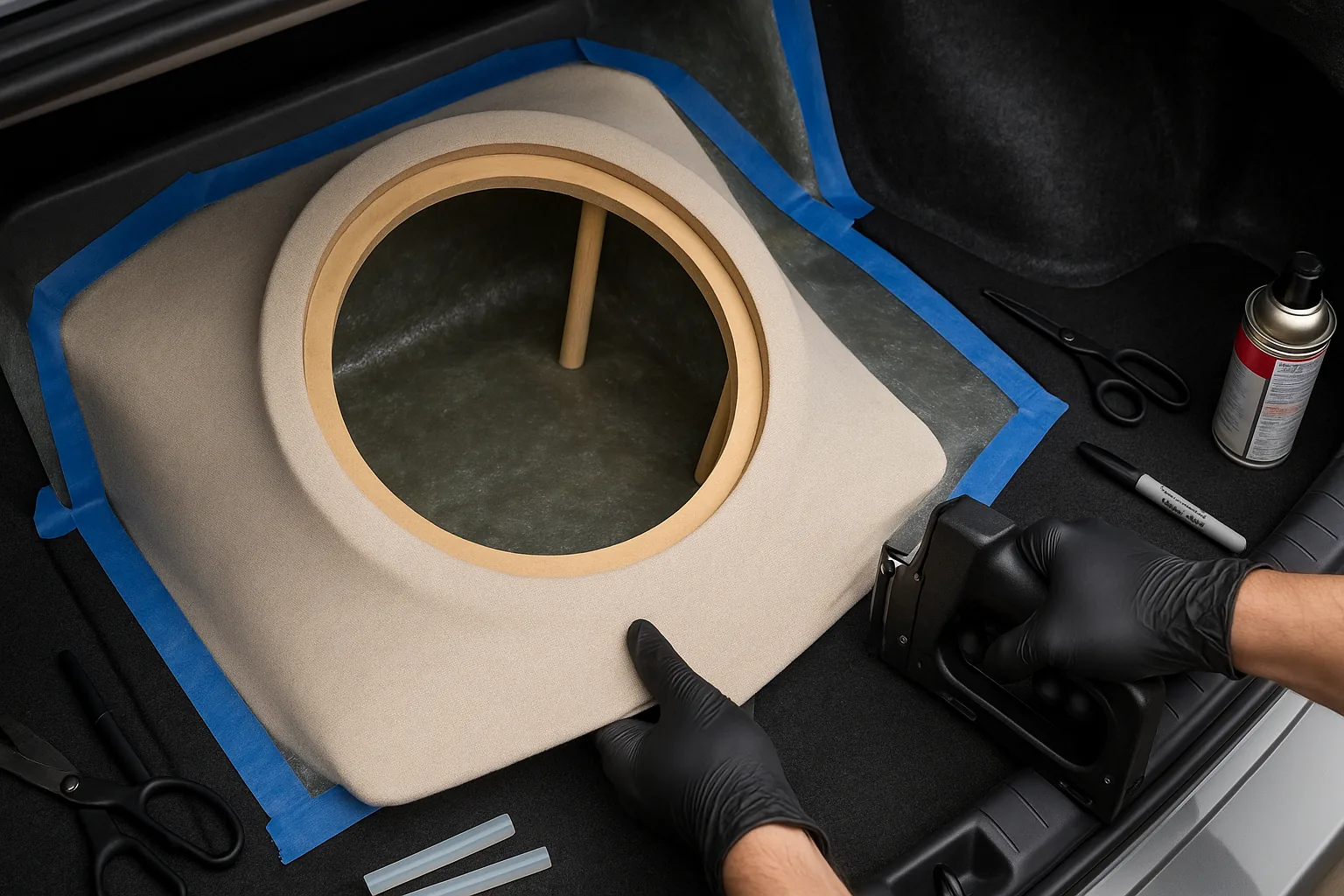

Fleece Surface Formation
Properly stretched fleece creates a smooth, sandable surface that forms the foundation for the final finish. This technique eliminates hours of body filler work and produces professional results.
Fleece Technique:
- • Maintain consistent tension across entire surface
- • Make relief cuts only where absolutely necessary
- • Fully saturate fabric without creating resin pools
- • Allow complete cure before reinforcement layers
Professional Techniques and Trade Secrets
Resin Working Time Control
Professional builders master catalyst ratios to control working time based on ambient conditions. At 73°F (23°C), 1% MEKP typically provides 20 minutes of pot life with most general-purpose polyester resins.
- Warm conditions: Reduce MEKP to extend working time
- Cool conditions: Increase within manufacturer limits
- Monitor batch size: Larger quantities kick faster due to exotherm
Eliminating Print-Through
Advanced builders use finishing techniques to prevent fabric texture telegraphing through paint finishes, creating smooth, professional surfaces.
- Finish with light cloth veil for smooth surface
- Use epoxy final coat to minimize shrinkage
- Apply high-build primer system for paint finishes
Volume Verification for Irregular Shapes
Water Method
Fill sealed enclosure with measured water. One gallon equals 0.133 cubic feet. Most accurate but requires complete drying afterward.
Media Fill Method
Use measured packing material or rice to estimate volume without moisture risks. Less precise but safer for finished enclosures.
Displacement Calculation
Subtract driver, terminal, and bracing volumes from gross internal volume to determine net acoustic volume.
Professional Finishing Techniques

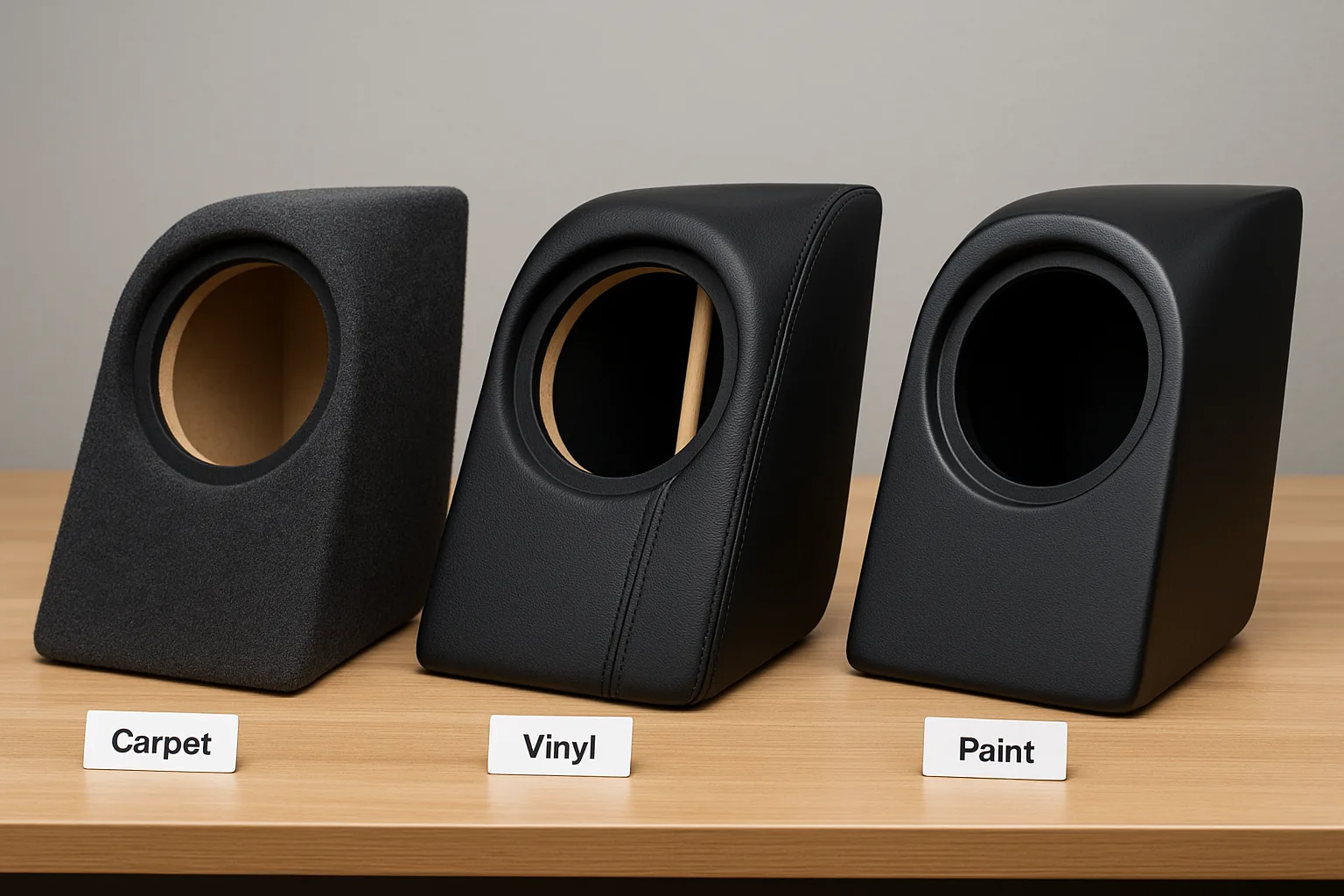

Finish Options
The finishing process transforms a functional fiberglass shell into a professional-grade component that integrates seamlessly with the vehicle’s interior. Each finish type requires specific preparation and techniques.
Carpet Finish
Most forgiving option, excellent sound dampening properties
Vinyl Wrap
Durable, easy to clean, matches OEM interior materials
Paint Finish
Premium appearance, requires careful surface preparation
Finishing Process Overview
Surface Preparation
Sand and fill imperfections
Primer Application
High-build primer system
Final Sanding
Progressive grit sequence
Final Finish
Carpet, vinyl, or paint
Common Mistakes and How to Avoid Them
Critical Errors
Over/Under-Catalyzing Resin
Causes under-cure or excessive brittleness. Always follow manufacturer specifications and account for temperature.
Inadequate Thickness
Shells that flex under pressure will resonate and fail. Use the thumb test – if it flexes, add more layers.
Poor Release Preparation
Resin damage to vehicle trim is expensive. Use multiple protection layers and quality release agents.
Prevention Strategies
Temperature Monitoring
Track ambient temperature and adjust catalyst ratios accordingly. Keep detailed mixing records.
Progressive Testing
Test structural integrity at each stage. Add reinforcement where needed before continuing.
Comprehensive Protection
Over-protect rather than under-protect. Use tape, foil, and PVA release generously.
Troubleshooting FAQ
Why did my fleece sag after applying resin?
Fleece sagging indicates under-tensioning during stretching or oversaturation in localized areas. Sand the affected area lightly, restretch fresh fleece with proper tension, and apply resin more evenly across the surface.
My enclosure still “booms” – what’s wrong?
Booming indicates insufficient structural rigidity. Add internal tapes at corner joints, increase overall thickness with additional layers, or add internal ribs across large panel spans. The enclosure should not flex under firm thumb pressure.
Resin kicked too fast – how do I prevent this?
Fast kick time results from excessive catalyst percentage or high ambient temperature. Reduce MEKP to approximately 1% in warm conditions and mix smaller batches to extend working time. Monitor temperature and adjust accordingly.
Can I use epoxy resin with chopped strand mat?
Standard CSM is optimized for styrene-based polyester resins. With epoxy systems, use woven or finishing cloth instead. While some CSM formulations may wet out with epoxy, they’re generally unnecessary and not recommended for epoxy laminating schedules.
Related Guides and Resources
Subwoofer Displacement Guide
Calculate accurate displacement volumes for precise enclosure sizing and optimal acoustic performance.
Ported vs Sealed Comparison
Understand the acoustic differences between ported and sealed designs for optimal subwoofer selection.
Crossover Settings Guide
Master crossover frequency settings for seamless integration between subwoofers and main speakers.
Complete Shopping Checklist
Essential Materials
Tools and Safety
Ready to Build Your Custom Enclosure?
Building a fiberglass subwoofer box requires patience, proper materials, and attention to detail. Following these professional techniques will result in a custom enclosure that provides years of exceptional performance and perfectly complements your vehicle’s interior.
