Series

Performance Series

Universal sealed and ported enclosures in single and dual 8", 10", 12" and 15".

Shop Performance Series at Audio Intensity Model table

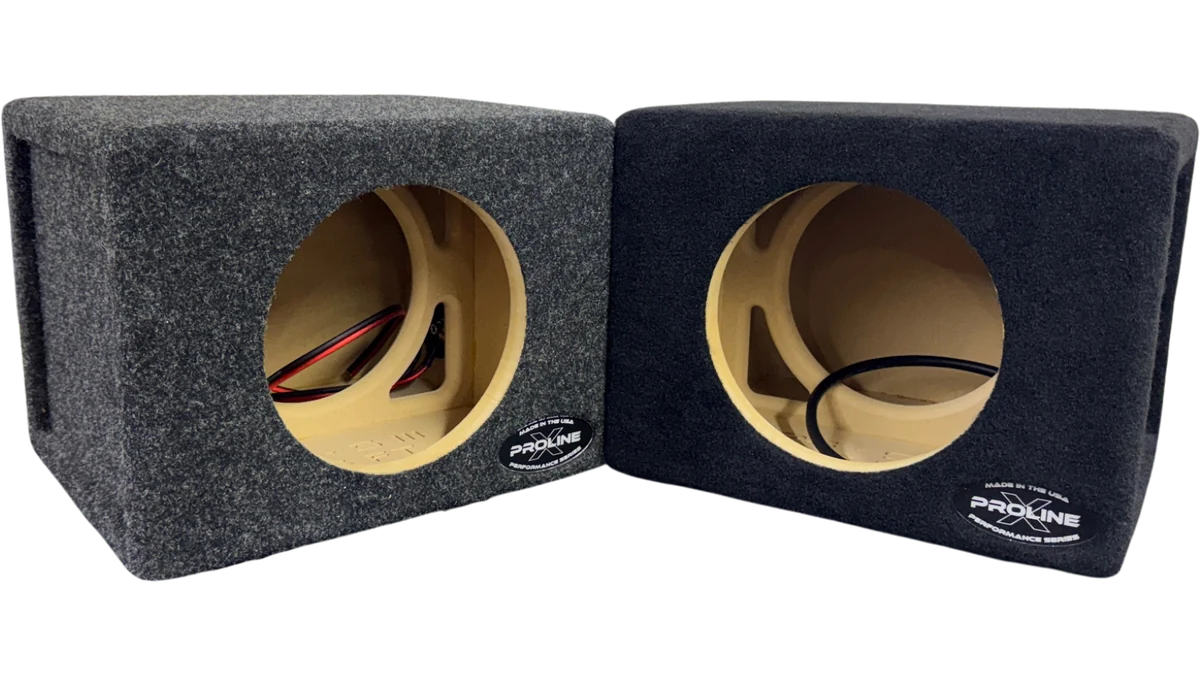

Performance Series enclosure

About the series

What Performance Series means

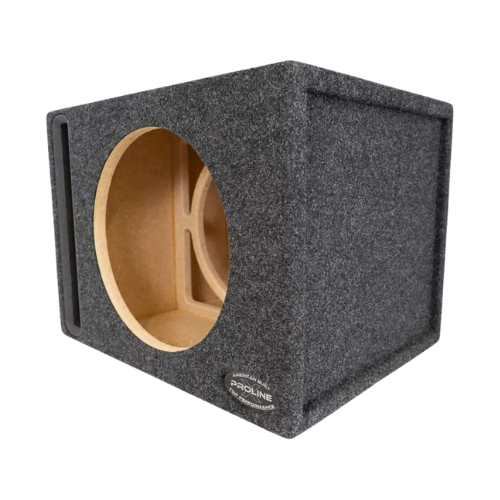

The Performance Series is the universal line: cabinets sized to a standard driver diameter and a known-good volume range rather than to one specific model. It is the right series when the driver is not settled yet, when it might change later, or when a buyer wants a properly built box for a subwoofer that is already in hand. Sealed and ported versions run from 6.5" through 15", in single and dual driver layouts, and every ported cabinet is tuned to 36 Hz, a universal point that covers most music without giving up the bottom octave.

The material is the first thing that separates this box from a commodity one. Every panel is 3/4" Langboard Elite MDF, a mill-certified stock with a 200 psi internal bond rating, a 410,000 psi modulus of elasticity and 325 lb face screw holding strength. The internal bond figure is the one that matters for enclosures. It measures how well the panel holds together under sustained pressure, which is exactly what a subwoofer at excursion applies to the inside of a box every day, and it is where cheaper MDF starts to delaminate at the glue line.

Version III is the current build standard. V-groove cuts combined with dado joinery replace the butt joints used in Version II: the dado seats each mating panel in a channel, which adds glue surface and locks the panels mechanically before the adhesive cures, and the V-groove registers the panels during assembly so the micro-gaps that open in butt joints under heat and vibration never form. Internal bracing is increased throughout. None of this is visible once the cabinet is carpeted; it shows up as a box that is still tight after years of daily use.

The terminal cup is the most noticeable change from the earlier version. It is built in-house in Tennessee from an ABS and carbon-fiber composite, mounted recessed into the panel so the connection sits flush and protected, with stainless steel hardware, aluminum landing plates and copper ring terminals in place of push-in spring clips. Every cabinet ships pre-wired in 12-gauge OFC, so there is nothing to source, strip or crimp.

Sealed or ported comes down to the system. A sealed cabinet gives tighter transient response, a smaller footprint and easier placement, and asks more of the amplifier for the same output. A ported cabinet trades some of that control for efficiency and extension around its tuning. Both are built to the same standard, and the sealed ones ship with polyfill installed. Finishes are grey or black. Performance Series cabinets carry a one-year limited warranty.

Build standard

What defines a Performance Series cabinet

Universal cutout and volume

Each cabinet is cut to a standard driver diameter and a volume range that suits the drivers commonly built at that size, so it works when the subwoofer is undecided or may change. When the driver is settled, the Performance Optimized series cuts to it exactly.

Langboard Elite MDF, 3/4"

Published mill figures, not marketing: 48.5 lb/ft³ density, 200 psi internal bond, 4,200 psi modulus of rupture, 410,000 psi modulus of elasticity and 325 lb face screw holding strength. Panel flex is what turns into box resonance, and this stock resists it.

V-groove and dado joinery

Version III joins panels with a dado channel that seats the mating panel and a V-groove that registers it during assembly. The joint is locked mechanically before the glue cures, and it stays tight through temperature cycling and years of high-excursion use.

Bonded with Titebond II

Cabinets are assembled with Titebond II wood glue on the full dado surface, which is the bond the joinery is designed to carry.

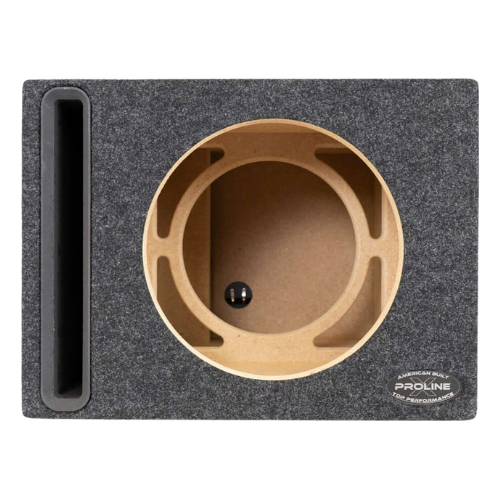

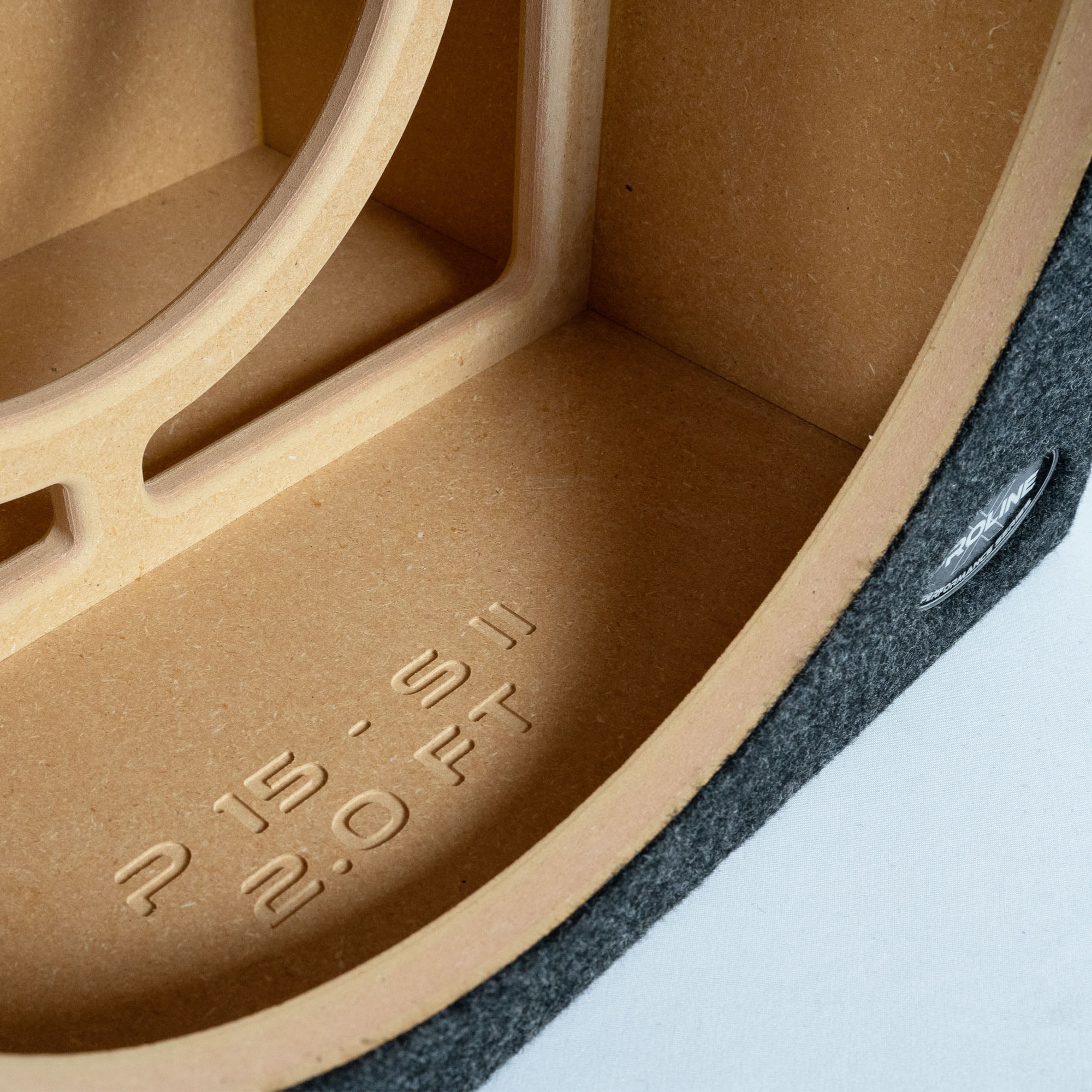

Increased internal bracing

Version III adds bracing throughout compared with Version II. Bracing controls panel resonance on its own, independent of the joints, and the two together remove the flex points that degrade bass performance over time.

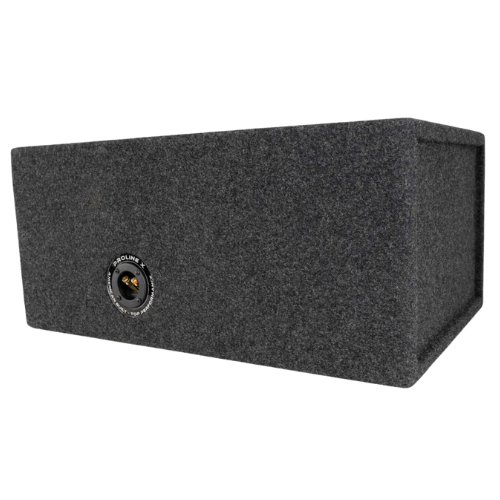

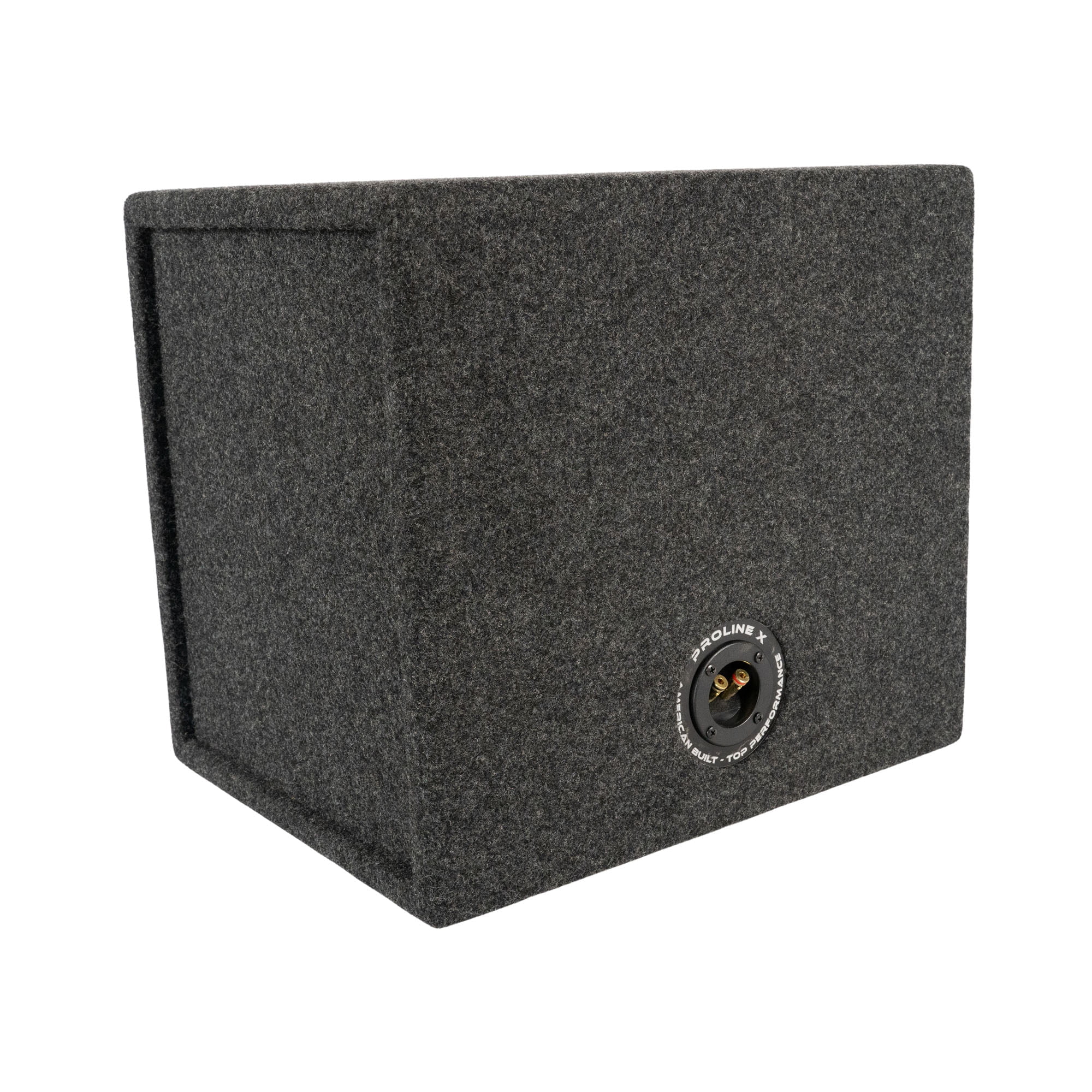

In-house composite terminal cup

A recessed ABS and carbon-fiber composite cup built in Tennessee, with stainless hardware, aluminum landing plates and copper ring terminals. It holds alignment through repeated connection cycles and takes wire gauges that spring clips will not.

Pre-wired 12-gauge OFC

Oxygen-free copper at 12 gauge is the correct wire for the power these cabinets are built to carry, and it is installed at the factory from the baffle to the terminal cup.

Single 3/4" baffle, rounded corners

The mounting baffle is a single 3/4" layer, the right specification for universal daily use, and the cabinet corners are rounded so the box slides into a trunk or behind a seat without catching trim.

36 Hz ported tuning, polyfill in the sealed builds

Every ported Performance cabinet is tuned to 36 Hz. Every sealed one ships with polyfill installed, sized to its volume, and the quoted net volume assumes it is in place.

One-year limited warranty

Performance Series cabinets are covered for one year against structural failure and manufacturing defects, including bracing, glue joints, carpet adhesion, terminal cups and internal wiring.

Models

Every Performance Series cabinet

22live models
Ported / Sealedalignment
6" · 8" · 10" · 12" · 15"driver sizes
Dual / Quad / Single / Tripledrivers per box
Down Fire / Standard / Wedgeorientation
ModelAlignmentNet volW × H × DCutoutFits
P6D-P Ported 40 Hz 0.60 ft³ (Total) 24" W x 8" H x 12" D5.97"Universal
P6-P Ported 38 Hz 0.30 ft³ 16" W x 8" H x 10.75" D5.95"Universal
P8D-P Ported 36 Hz 1.5 ft³ (0.75 ft³ per driver) 24" W x 11" H x 16" D7.25"Universal
P8D-S Sealed 0.80 ft³ (0.40 ft³ per driver) 19" W x 10" H x 13" D7.25"Universal
P8Q-S Sealed 1.80 ft³ Net: shared air space, heavily braced 38" W x 11" H x 10.75" D7.25"Universal
P8-P Ported 36 Hz 0.75 ft³ 19" W x 11" H x 13" D7.25"Universal
P8-S Sealed 0.45 ft³ 13" W x 10" H x 10.5" D7.25"Universal
P8T-S Sealed 1.35 ft³ (0.45 ft³ per driver) 29" W x 10" H x 12" D7.25"Universal

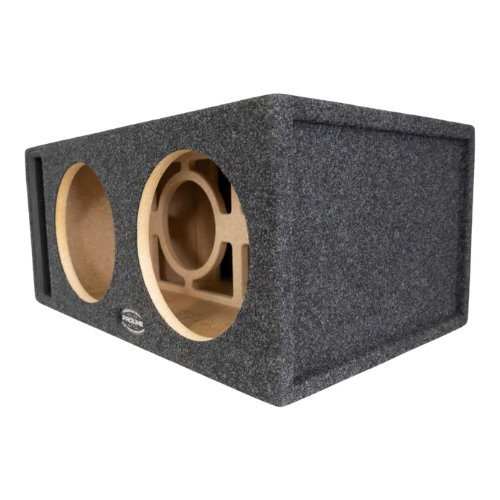

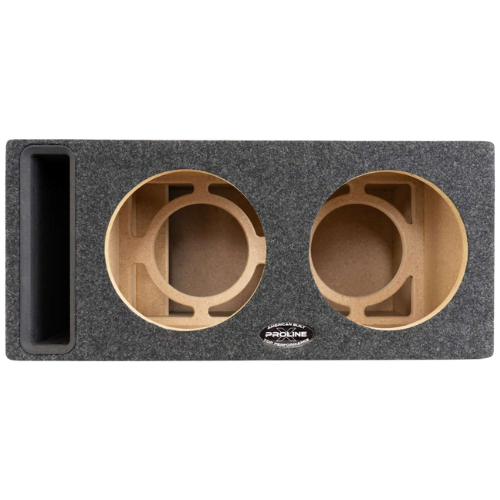

P10D-P Ported 36 Hz 2.25 ft³ 28" W x 12.5" H x 17.5" D9.25"Universal
P10D-S Sealed 1.5 ft³ Net: shared air space, heavily braced 28" W x 12.5" H x 10.75" D9.25"Universal
P12-WDS III Sealed 2.0 ft³ total, 1.0 ft³ per driver 28" W × 14.5" H × 8.5": shallow end / 13.75": deep end D11.13" x2Universal
P10-P Ported 36 Hz 1.25 ft³ 19" W x 12" H x 16.25" D9.25"Universal
P10-S Sealed 0.70 ft³ 14.5" W x 12" H x 12.5" D9.25"Universal
P10-S DF Sealed 0.60 cu ft, physical net 24.5 in W x 13.5 in D x 5.5 in H9.25 inUniversal
P10-WS III Sealed 0.70 ft³ Net 14.5" W × 13" H × 8.5": shallow end / 13": deep end D9.25"Universal
P12D-P Ported 36 Hz 2.75 ft³ 32" W x 15" H x 15.3" D11.15"Universal
P12D-S Sealed 2.0 ft³ Net: shared air space, heavily braced 28" W x 14.5" H x 12.5" D11.15"Universal
P12-P Ported 36 Hz 1.5 ft³ 19.5" W x 14.5" H x 15.5" D11.15"Universal
P12-S Sealed 1.25 ft³ 19.5" W x 14.5" H x 11.5" D11.15"Universal
P12-S DF Sealed 1.00 cu ft, physical net 29.5 in W x 14.5 in D x 6.75 in H11.13 inUniversal
P12-WS III Sealed 1.0 ft³ Net 16" W × 14.5" H × 8.5": shallow end / 13.75": deep end D11.13"Universal

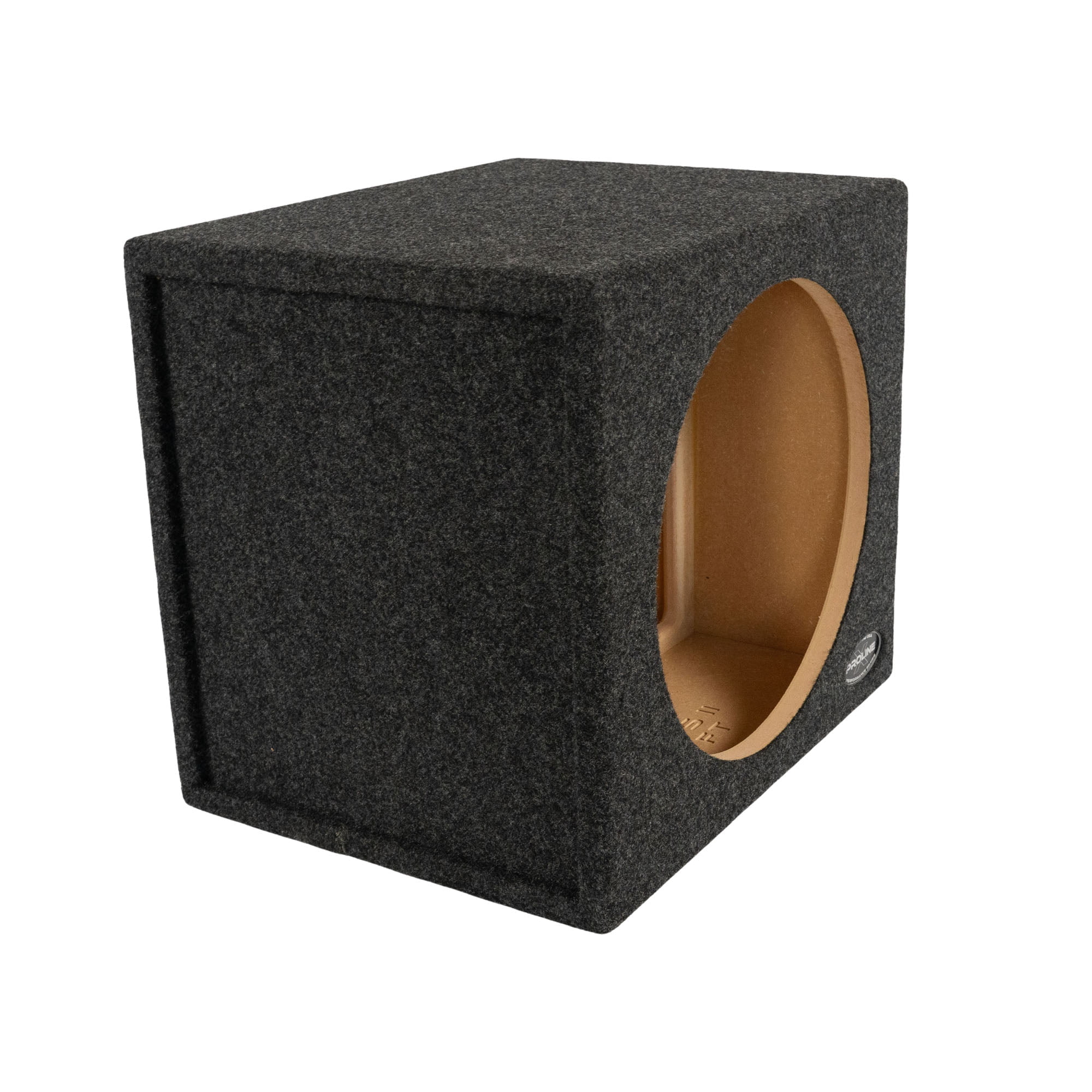

P15-S Sealed 2.0 ft³ 19" W x 17" H x 15" D14.1"Universal

Before you order

Performance Series questions

What is the difference between Version II and Version III?

Version III is a construction upgrade. Joinery moved from butt joints to V-groove combined with dado cuts, internal bracing increased throughout, and the generic spring-clip terminal cup was replaced by a recessed ABS and carbon-fiber composite cup built in Tennessee, with stainless hardware, aluminum landing plates, copper ring terminals and 12-gauge OFC pre-installed. V3 also added a black finish alongside grey.

How do I know which version a cabinet is?

The product title carries the designation, V2 or V3. Version II units are marked as closeout, and when a V2 listing sells out its page redirects to the equivalent V3 cabinet.

What MDF is used?

3/4" Langboard Elite MDF: 48.5 lb/ft³ density, 200 psi internal bond, 4,200 psi modulus of rupture, 410,000 psi modulus of elasticity and 325 lb face screw holding strength. Those are the mill's published figures.

Sealed or ported?

Sealed gives tighter transient response, a smaller footprint and easier placement, and asks more of the amplifier for the same output. Ported adds efficiency and extension around its 36 Hz tuning, in a larger box with a steeper rolloff below the tuning. Both are built to the same standard.

How does the Performance Series differ from the other Proline X series?

It is the universal fit. Performance Optimized shares the construction but is cut to one driver's parameters. Professional adds a heavier baffle and bracing for high-output drivers. Micro is the shallow-mount build. The wedge cabinets share the Performance specification in an angled profile.

Does polyfill come with it?

The sealed cabinets ship with polyfill installed and sized to their volume. The ported cabinets ship dry, because damping material shifts the tuning.
